COG Mono 240160 FSTN Transmissive White Backlight LCD Display Module

Name: COG Mono 240160 FSTN Transmissive White Backlight LCD Display Module
Brand: ROYAL DISPLAY
Price: 1 USD

Buy cheap COG Mono 240160 FSTN Transmissive White Backlight LCD Display Module product

Brand Name : ROYAL DISPLAY

Model Number : RYB240160A

Certification : SGS ROHS

Place of Origin : CHINA

MOQ : 500pcs

Price : Negotiable

Payment Terms : L/C, T/T, , L/C, Western Union, MoneyGram

Supply Ability : 300k/Month

Delivery Time : 25~28 Working Days

Packaging Details : 220pcs/CTN 11Kg L45*W36*H32CM

Product Name : COG Graphic LCD Module FSTN

Model No. : RYB240160A

Dot Format : 240X160dot

Viewing Angle : 6 O' clock

LED Backlight : Red or Green

Operating Temp : -20º C~70º C

LCD Type : FSTN Postive

Driver : UC1698U

Interface : serial/parallel

Contact Now

COG Mono 240160 FSTN Transmissive White Backlight LCD Display Module

Display Specifications

Item	Description
Product Name	240x160 dots LCD Module
Model No.	RYG240160M
Dot Format	240 x 160
Outline Dimension(mm)	60*51.7
Viewing Area(mm)	56*38.7
Pixel Size( mm)	0.196 x 0.196
Viewing Angle	6 O' clock
LCD Type	FSTN-Positive, STN-Blue, STN-YG
Backlight	Red or Green LED backlight
Driver IC	UC1698U
Power supply	3.3V
Interface	Parallel/Serial
Operating Temp	-20º C~70º C
Storage Temp	-30º C~80º C

COG Mono 240160 FSTN Transmissive White Backlight LCD Display Module

FAQ

Q1. How can I get the samples?

A: If you need samples, we can make as per your request .You should pay the sample fee and freight. Sample lead time always be within 2-5 days.

Q2. How to order lcd?

A:Please send us your purchase order by Email, or ask us to send you one invoice. We need to know the following information for your order.

1)Product information-Quantity, part number

2)Delivery time required.

3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.

4)Forwarder's contact details if you have any in China.

Q3. How long can I expect to get the sample?

A:The samples will be ready for delivery in 5~7days.The samples will be sent via express and arrive in 5~7 days.

Q4. When can I get the datasheet?

A: When we get your inquiry, you shall first tell us the part number you want, then we can send you the datasheet immediately

Typical Applications

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc

Features

Transmissive, Transflective and Reflective Mode

Duty Ratio: up to 1:240

support gray scale display

Wide Operation & Storage temperature range

Custom LCD/LCM are available

Product Tags:

Lcd Graphic Display Module

Monochrome Graphic Display

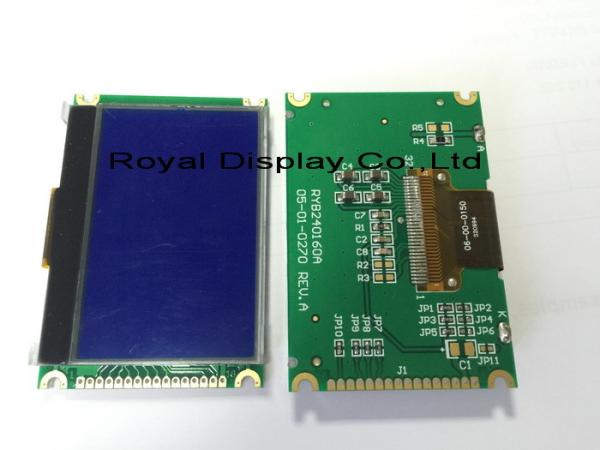

COG Mono 240160 FSTN Transmissive White Backlight LCD Display Module Images
