Original LCD Manufacturer Custom Transflective Monochrome VA LCD Display
PRODUCT DESCRIPTION
1. 192x64dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option
| Item | Description |
| Product Name | 192x64dots Graphic LCD Module |
| Model No. | RY19264 |
| Dot Format | 192x64 |
| Outline (mm) | 135*65 |
| Viewing Area(mm) | 6:00 |
| Pixel Size( mm) | 0.43 x 0.42 |
| Viewing Angle | 6 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | ST7586S |
| Power supply | 3.3V |
| Interface | Parallel |
| Operating Temp | -20º C~70ºC |
| Storage Temp | -30º C~80ºC |
WHAT CAN WE CUSTOM?
1.LCD type: VA/TN/HTN/STN Yellow-Green/STN Gray/STN Blue/FSTN/DFSTN
2.Display form: LCD panel/COB/COG/COF
3.Polarizer: Transflective, Transmissive, Reflective
4.Backlight: Green, Gray, Yellow-Green, Blue, Black, White, Orange/Amber, others
5.Operating temperature: 0 to +50°C, -10 to +60°C, -20 to +70℃,-30 ℃ +85 ℃, others
6.Connector/Connection: Metal PIN, Rubber/Zebra, Heat seal, FPC, FFC
ACCESSORIES
Royal Display can provide many accessories to go with your display. If you would like to source a connector, cable, test jig or other accessory preassembled to your LCD (or just included in the package), our team will make sure you get the items you need. Get in touch with a team member today to accessorize your display!

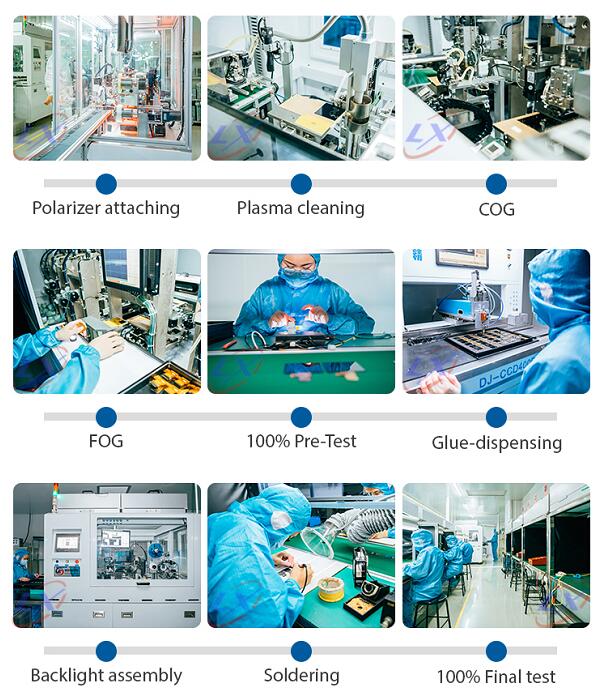

LCD Moudle Factory
FAQ:
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it's not fit, we will do the necessary adjustment & customization.
Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT Icd module has different tooling cost, which includes FPC,Touch Screen,Backlight , Bezel and so on.
Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories,small- medium size use knife card isolation packaging, large are used in aircraft box packaging all packages are protected by outer box and strapping to ensure the safety of material transportation.
Q:How to control the quality of products?
A:The company has a professional quality team, and all products are 100% inspected before shipment.
Q: Are you open to OEM processing?
A: Yes, we can OEM.
Q: What is the products application?
A: Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
